COUPLE JOINT

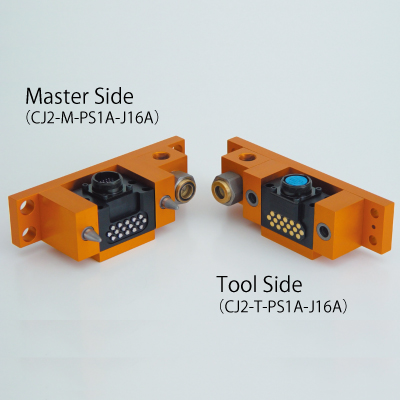

Couple Joint 2Modules Type

  • Pneumatic pressure and electric signal coupling





Couple Joint is a device used to easily and simultaneously connect and disconnect pneumatics and electric signals. Now electric signal lines and pneumatic fittings can be changed with the touch of the hand, shortening the traditional manual set-up times. The modules incorporate the same designs as the BL Quick-Change, with proven reliability and durability.






Features of Couple Joint

Abundant utilities

Up to three modules can be selected for various applications to exchange
dies or jigs in stamping and welding processes. Self-sealing pneumatic ports are also available.


Floating function ±1㎜

Couple Joint has a floating function for position compliance and gap adjustment between the master side and tool side.


Uses

溶接治具段取り替え時の配線
配管ワンタッチ接続・通電・通気が必要な移動台車と固定装置間の接続



Applications

プレス、射出成形など金型交換
溶接治具の交換

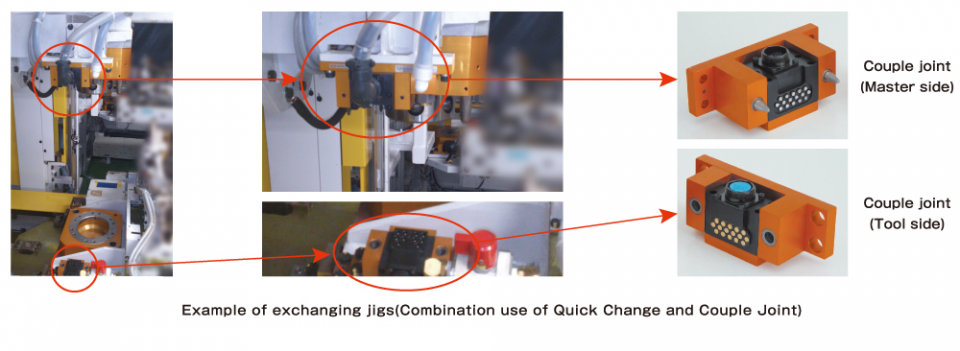

Example of Use

Specifications

Model Selection
