Product information
- Load capacity：300kg(2,940N)
- Optional parts can be equipped

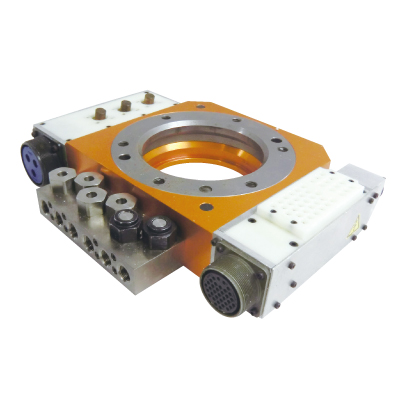

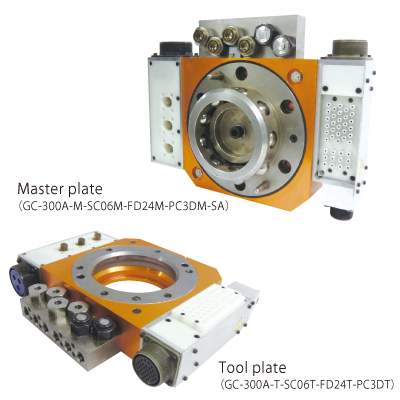

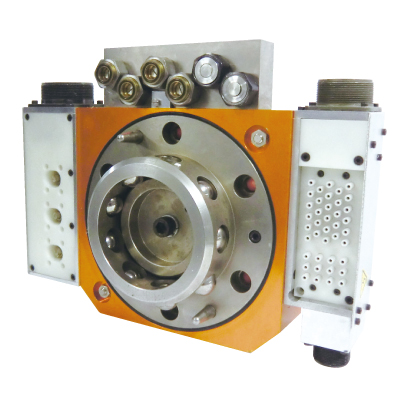

The BL QUICK-CHANGE Model GC-300A is a device for automatic tool changing, specially designed for changing material handling welding guns or guns with built-in transformers in a spot-welding line. Primary current, air pressure and electrical signals (Servo) modules can be selected for the GC-300A.The GC-300A provides increased production line efficiency and cost effectiveness.
Master plate Attachments

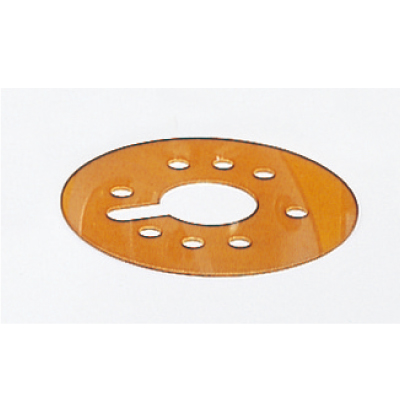

・1 Insulation plate
・2 insulation pins
・6 insulation washers
・6 insulation pipes
・6 bolts（M10×30）
・1 locating pin
・6 plain washers
Features of GC-300A
Unidirectional cable and hose
The power and control cables and the pneumatic hose are oriented in a single direction.
The primary current module contains a floating mechanism
The primary current module is equipped with a self-cleaning function and a floating mechanism.
Self-sealing coolant ports
The check valves of the circulating coolant ports are equipped with a PTFE sleeve to prevent liquid spillage.
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.
Speciffications

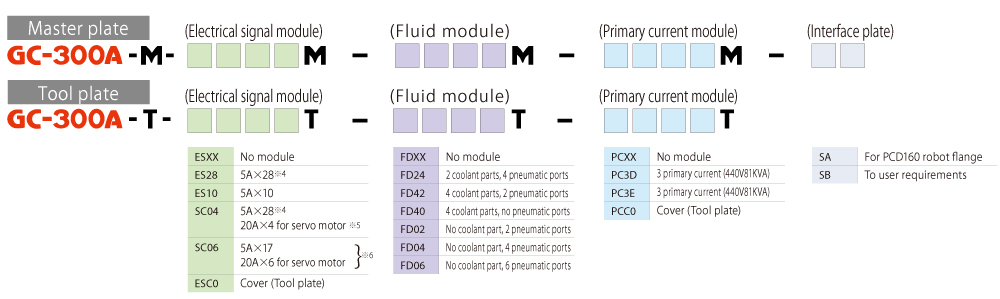

Ordering Information
Option
Electric signal module ( Servo module)
- Load capacity：300kg(2,940N)GC-300-M(T)-SC04M,SC06M
Primary current module
- Load capacity：300kg(2,940N)GC-300A0M(T)-PC3DM,PC3DT
- Load capacity：300kg(2,940N)GC-300-M(T)-PC3EM
- Optional parts can be equippedGC-300-M(T)-PC3ET
