- QCP-220
Product information
- Load capacity：220kg(2,156N)
- Optional parts can be equipped
The BL QUICK-CHANGE Model QCP-220 is an automatic end-effector changer used in press handling and loading applications, with a payload capacity of 200kg for large panels and high-speed robots. It can be directly installed on a PCD125 mm robot flange.
Master plate Attachments
・6 bolts（M10×65）
・6 plain washers
・1 locating pin
Features of QCP-220D
Utilities specifically for press applications
Pneumatic ports (Rc1/2) can be used for vacuum pressure and electrical signals can be used for ID confirmation.
Built-in lock/unlock sensor
Due to built-in design, QCP-220 is 12.4% thinner than QC-150C with the lock/unlock sensor.
Faster lock/unlock operation
Due to built-in design, QCP-220 is 12.4% thinner than QC-150C with the lock/unlock sensor.
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.
Specifications

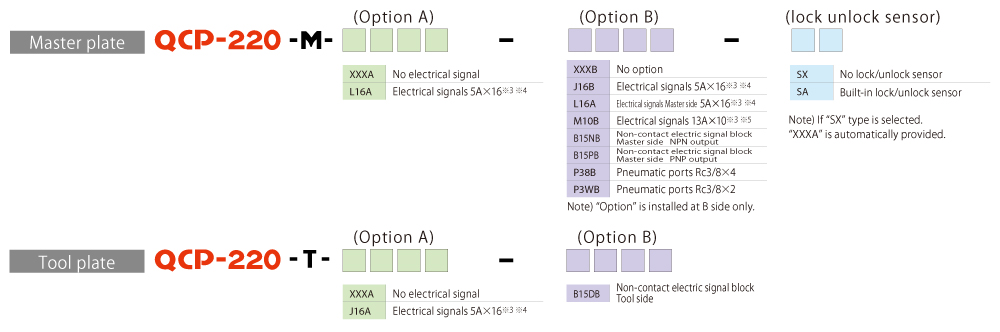

Ordering Information
Option
Electrical signal contact block
- Load capacity：220kg(2,156N)L16A(Master side only)
- Optional parts can be equippedJ16A(Tool side only)
- Load capacity：220kg(2,156N)QCP-M(T)-J16B
- Load capacity：220kg(2,156N)QCP-220-M(T)-M10B
- Load capacity：220kg(2,156N)L16A-M
Non-contact electric signal block
- Load capacity：220kg(2,156N)B15NB,B15PB（Master side only）
- Optional parts can be equippedB15DB（Tool side only）
Pneumatic ports
- Load capacity：220kg(2,156N)QCP-220-M(T)-P3WB
- Load capacity：220kg(2,156N)QCP-220-M(T)-P38B
