QUICK-CHANGE

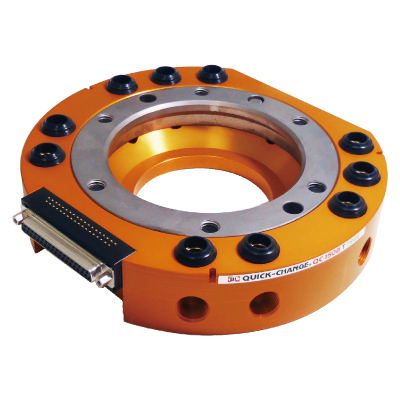

QC-150C

Product information
QUICK-CHANGE

Exchange robots and machines hands and tools automatically

Load capacity：150kg(1,470N)
Optional parts can be equipped

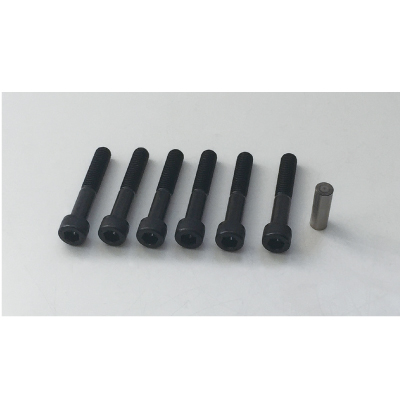

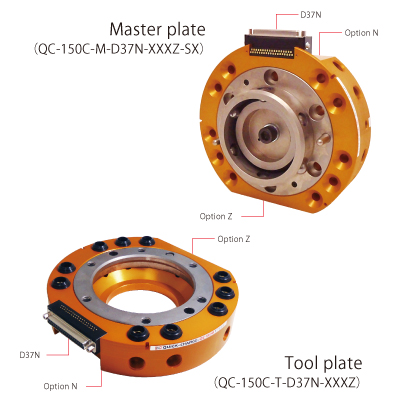

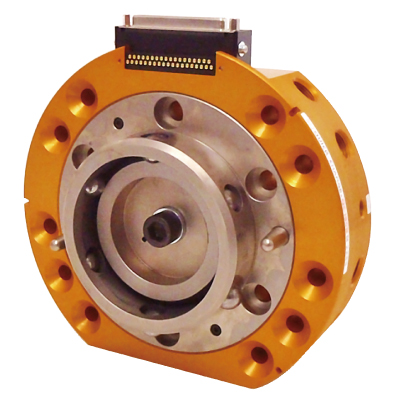

Master plate Attachments

・6 bolts（M10×60）
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

Catalog (PDF)

Features of QC-150C

Lock without touching

The Master plate can lock onto the Tool plate with a gap between them.

Superior fail-safe locking mechanism

BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple
if the air pressure is shut off.

Speciffications

Main Body
Load capacity (rated load)	1,470N（150kg）
Positional repeatability ※1	±0.015 mm
Allowable dynamic moment	Bending direction (Tx, Ty)	1,960N･m（200kgf･m）
Twisting direction (Tz)	1,960N･m（200kgf･m）
Coupling force (with air pressure of 0.49MPa)　※2	14,317N（1,460kgf）
Materials	Frame	Aluminum alloy
Lock/unlock mechanism	Stainless steel
Overall dimension (when coupled)	φ200×H90mm
Weight (Main body)	Master plate	5,810g
Tool plate	2,860g
Self-separating mechanism	ボールロック方式
Required air pressure	0.39〜0.68MPa（4〜7kgf/cm2）
Allowable temperature and humidity ranges	0〜50℃、35〜90%（結露なきこと）
Utilities	Electical signals Max3 AC50V Probe contact	3A×37 or none ※3
Pneumatic ports	Rc3/8×10

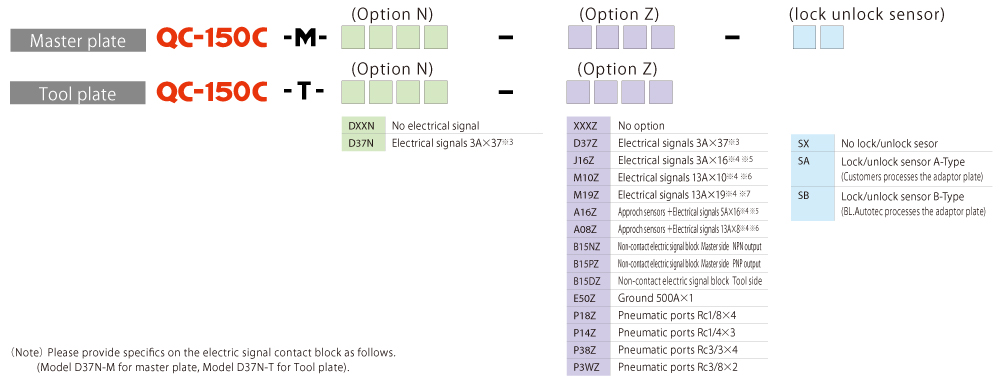

オプション
Utilities	D37	Electrical signals	3A×37 ※3
J16Z	Electrical signals	5A×16 ※4 ※5
M10Z	Electrical signals	13A×10 ※4 ※6
M19Z	Electrical signals	13A×19 ※4 ※7
B15NZ B15PZ	Electric signals Max.50mA DC24V Non-contact system （Please refer to page 41 for details.）	50mA×15 WEB series connector ※4 In Zone　1 IP67
B15DZ	Electric signals Max.5mA DC12V Non-contact system （Please refer to page 41 for details.）	5mA×15 WEB series connector ※4 IP67
E50Z	Ground	500A (50％ usage) ×1
P18Z	Pneumatic ports	Rc1/8×4
P14Z	Pneumatic ports	Rc1/4×2
P38Z	Pneumatic ports	Rc3/8×4
P3WZ	Pneumatic ports	Rc3/8×2
Lock/unlock sensor	Two built-in proximity switches
