Product information
- Load capacity：5kg(49N)
- Optional parts can be equipped
The BL QUICK-CHANGE Model Light-5A is a device for automatic tool changing, specially designed for low payload capacity robots, generally used in the assembly and handling of electrical parts, precision equipment and mechanical parts. During the unlocking process, the Light-5A Master plate pushes the Tool plate off (self-separating function). An optional shaft receptacle adaptor is available with the Light-5A to attach it to a shaft-type robot.。
Master plate Attachments
・4 bolts（M3×20）
・1 locating pin
Features of Light-5A
Self-separating function
The Light-5A locking mechanism has been designed to push the Tool plate off during the unlocking process, providing reliable separation.
Lock without touching
The Master plate can lock onto the Tool plate with a gap between them.
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.
Specifications

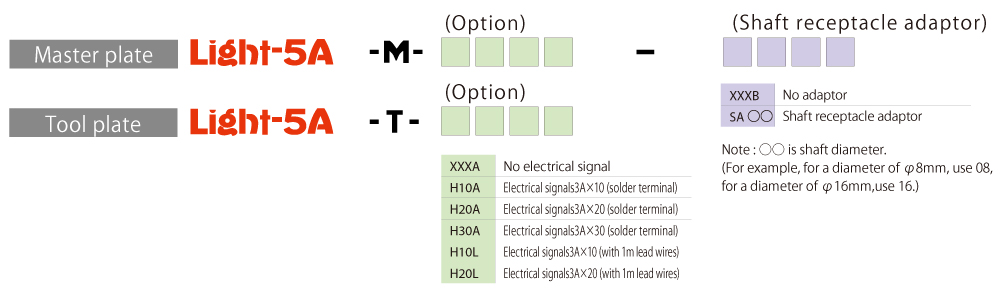

Ordering Information
Option
Electrical signal contact block
- Load capacity：5kg(49N)Light-5A-M(T)-H10A
- Load capacity：5kg(49N)Light-5A-M(T)-H20A
- Load capacity：5kg(49N)Light-5A-M(T)-H10L
- Load capacity：5kg(49N)Light-5A-M(T)-H20L
- Load capacity：5kg(49N)Light-5A-M(T)-H30A
Shaft receptacle adaptor
- Load capacity：5kg(49N)Light-5A-M(T)-SA○○
