Product information
- Load capacity:：1kg(9.8N)
- Optional parts can be equipped

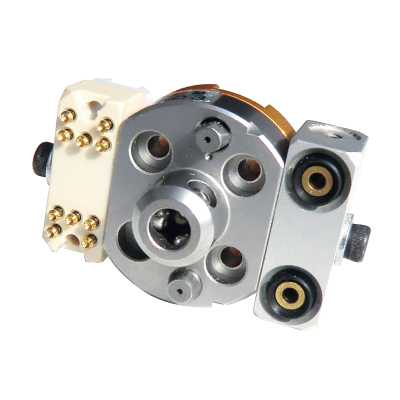

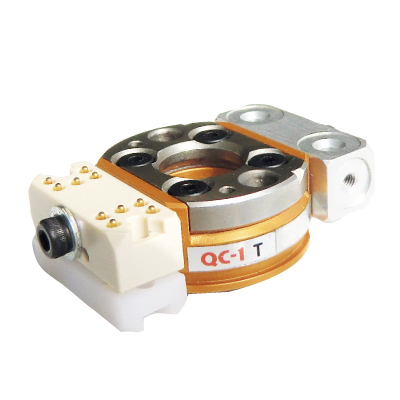

QC-1 is automatic end-effector exchange device for light load robot for various applications like a assembling of precise electric device, precise machine and handling purpose in medical product, food product.

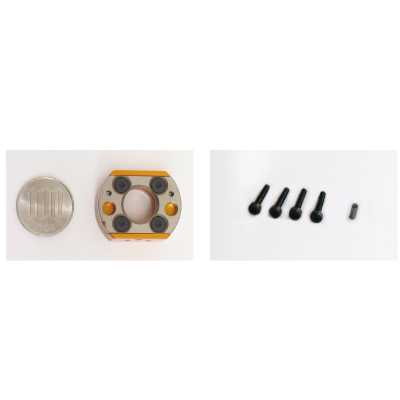

Master plate Attachments
・4 bolts（M3×15）
・1 locating pin (MSY3-8)
Features of QC-1
QC-1 is compatible for use on FANUC’s “Genkotsu Robot”
The flange interface on FANUC’s Genkotsu Robot 1M-1iA is
PCD20（4-axis and 6-axis spacs）, so QC-1can be used on
new or existing applications.
Lock without touching
The Master plate can lock onto the Tool plate with a gap between them.
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.
Speciffications

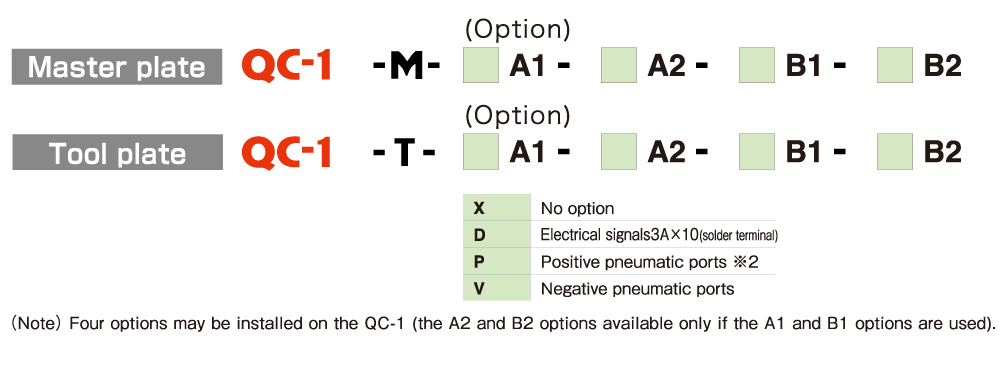

Ordering Information
Option
Electrical signal contact block
- Load capacity:：1kg(9.8N)QC-1-M（T）-D
Pneumatic ports
- Load capacity:：1kg(9.8N)QC-1-M(T) P
- Load capacity:：1kg(9.8N)QC-1-M（T)-V
